Home >> MEDICAL EQUIPMENT >> OPHTHALMOLOGY >> Topcon CT-80 Tonometer
General details
Product name: Topcon CT-80 Tonometer
# TCN TON CT80 0033
Manufacturer: Topcon
Topcon CT-80 Tonometer
More info:

Topcon CT-80 Computerized Tonometer

YOM: 2006

Condition: Good and fully operational

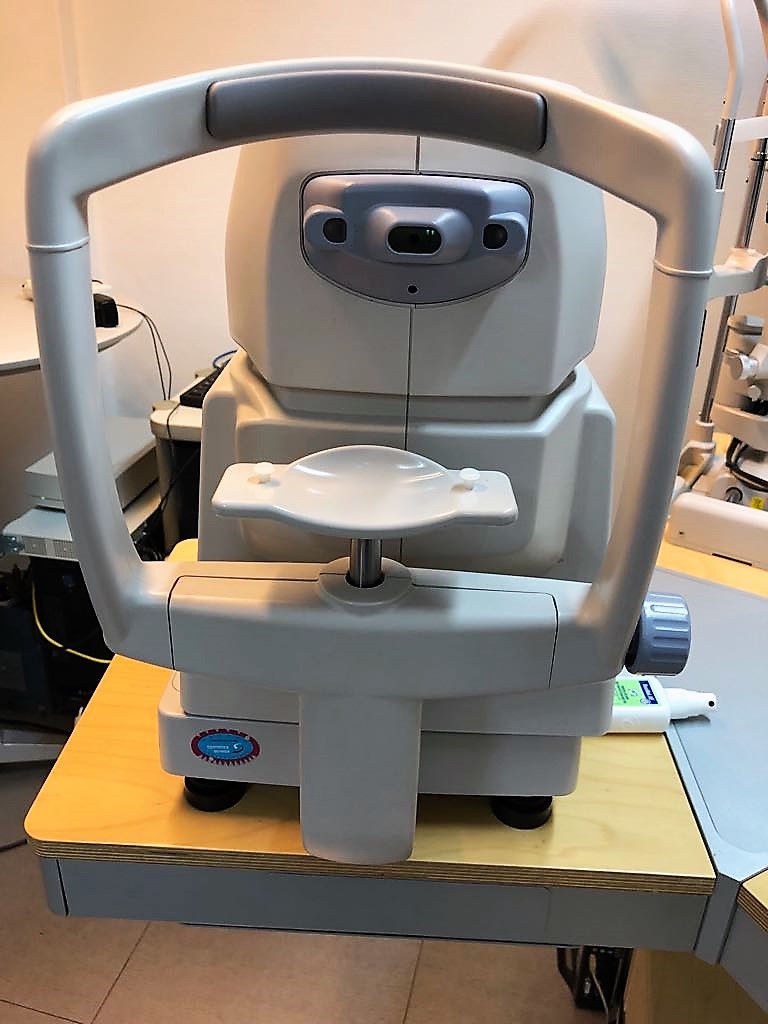

Topcon CT-80 Tonometer 1 Topcon CT-80 Tonometer 2

Topcon CT-80 Non-Contact Computerized Tonometer

The CT-80 Computerized Tonometer makes intraocular pressure measurements
easier and more comfortable than ever before. It features a 30% faster measurement
time, a triple patient safety function, and a dual sensor measuring system.


Key Features

  Innovative dual sensor system for accurate measurements
  Triple patient safety function
  New alignment bar & improved air cylinder reduces the interval time between
   measurements by 30%
  Built-in printer
  Fast, easy and accurate intraocular pressure readings
  Internal fixation target
  Auto measurement



Measurement Range:               060mmHg [030mmHg060mmHg(Selectable)]

Working Distance:                     :               11mm

Measurement Display:              TV Monitor Screen

 * R/L change-over・・・automatically detected and

 * Up to three measurements of each eye can be
displayed and printed out

Measurement Recording:          Built-in printer

Measurement Mod                    Auto / Manual (selectable)

Alignment:                                 When the alignment luminous spots are within the inner
 alignment mark

 * In Auto Mode: measurement is automatically activated

 * In Manual Mode: alignment will change from a broken

        box to a solid pattern when proper alignment is

    achieved, and depressing the switch on the

        omni-directional joystick activates the measuring cycle.


Error Indication:                         When the measurement signal is not strong enough, IOP
 value is indicated in ( ) or just 'ERR' is displayed

Adjustable Safety Stopper:        Minimum distance between the front of the instrument
  and the patient can be established in advance

Operating Temperature: 10           to 40

Base Travel:                              44mm (back & forth) / 88mm (left & right) / 28mm(vertically)

Chinrest Vertical Travel:            68mm

External Output Terminal:         RS-232C

Power Supply:                           AC100-120V, 220-240V 50/60Hz

Power Consumption:                 80VA ("Auto-shut-off": power saving mechanism adopted)

Dimensions:                               272(W)×505(D)×430458(H)mm

Weight:                                      Approx.18 kg
