Home >> LASER & AESTHETICS >> LASERS & AESTHETIC DEVICES >> Cynosure Hoya ConBio Medlite C6 Q-Switched Yag Laser

General details
Product name: Cynosure Hoya ConBio Medlite C6 Q-Switched Yag Laser
# CNS MC6 012 0186
Manufacturer: Cynosure - Hoia ConBio
Cynosure Hoya ConBio Medlite C6 Q-Switched Yag Laser
More info:

Cynasure ConBio

YOM: 2007

Consition: Excellent

​Including 3 heads:
1. Nd:YAG 1064/532 nm
2. Dye Impreg. 585 nm

3. Dye Impreg. 650 nm



MedLite C6

Frequency-Doubled Q-Switched Nd:YAG Laser

MedLite, the original Q-Switched laser from ConBio, has long been known as the industry’s gold standard laser for multi-colored tattoo removal. MedLite C6 is also highly effective on a wide range of additional indications on all patient skin types.

Specifications:

                            |                Nd:YAG                   |  Dye Impregnated Polymers  |    532 Lite

Wavelenth:      |  1064 nm       |  532 nm       |      585 nm       |      650 nm     |    532 nm

Pulse Width:    |                5-20 nsec                |                < 7 nsec                       |    5-20 nsec

Maximum Fluence Per spot size:

8 mm               |  2.0 J/cm²       |   ---------        |      ---------        |        ---------      |     ---------

6 mm               |  3.5 J/cm²       |   1.4 J/cm²   |       ---------       |        ---------       |     ---------

4 mm               |  8.0 J/cm²       |   3.2 J/cm²   |       ---------       |        ---------       |     ---------

3 mm               |  14 J/cm²        |   5.6 J/cm²   |       ---------       |        ---------       |     1.1 J/cm²

2 mm               |  ------------       |   12 J/cm²     |       8.0 J/cm²  |        5.1 J/cm²  |     2.4 J/cm²

2 mm               |  ------------       |   ---------        |       6.0 J/cm²   |        3.8 J/cm²  |     ---------

2 mm               |  ------------       |   ---------        |       4.0 J/cm²   |        2.5 J/cm²  |     ---------

2 mm               |  ------------       |   ---------        |       2.0 J/cm²   |        1.3 J/cm²  |     ---------

Max Rep rate:|                     10 Hz                      |       2 Hz            |        1 Hz           |     10 Hz

Aiming Beam:                                    Red, Variable intensity

Electrical requirements:     220V. Single phase, 9 Amps 110V 15 Amps

Size:                                           44.5"x 12" X 28.5" (113 cm x 30.5 cm x 72.5 cm)

Weight:                                                                128 lbs (58 Kg)

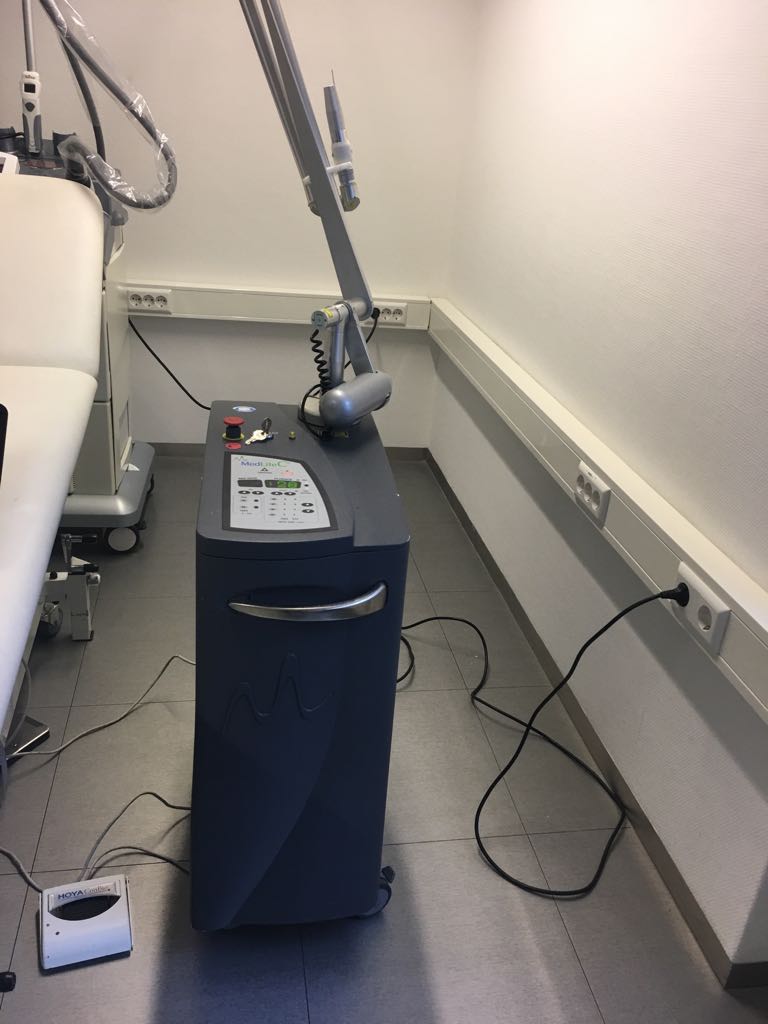

Medlite c6 1

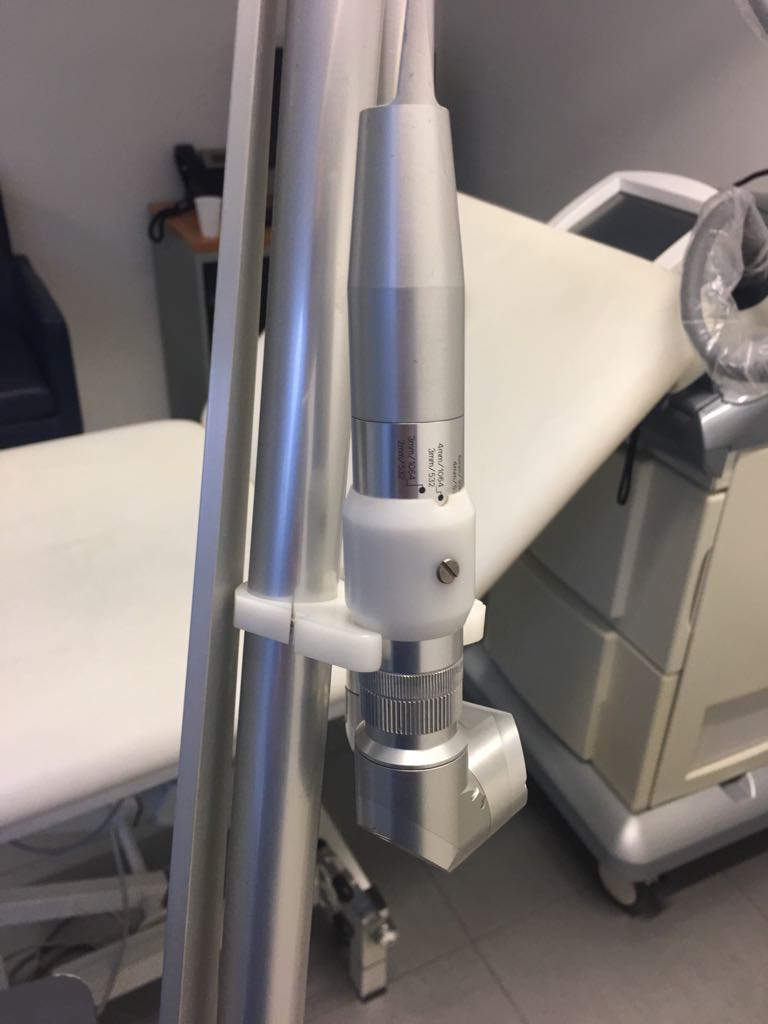

Medlite c6 2
